Major Flex Wing Grass Topper
Machine Description

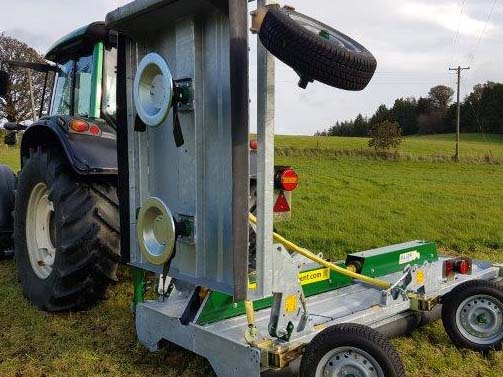

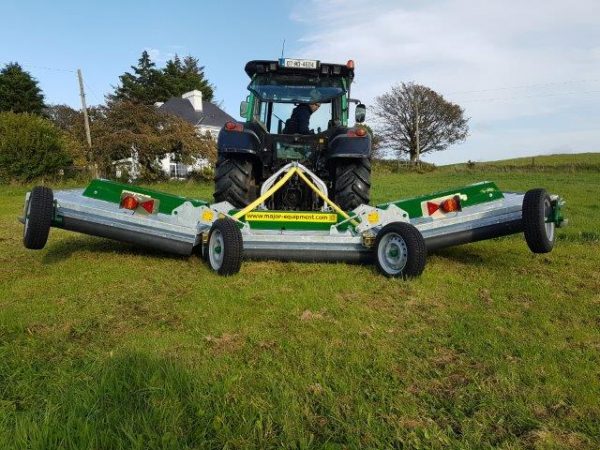

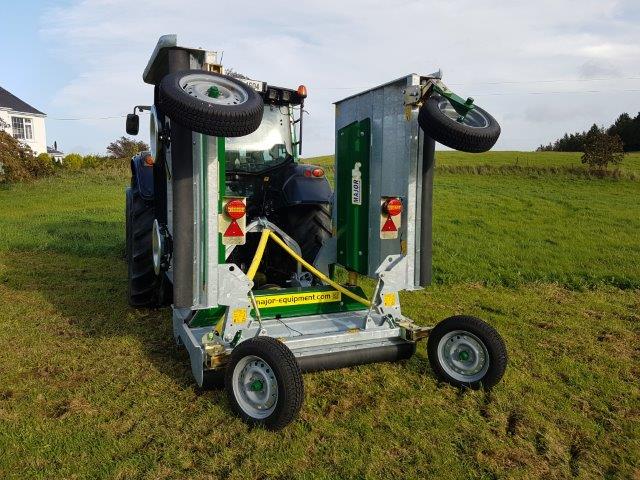

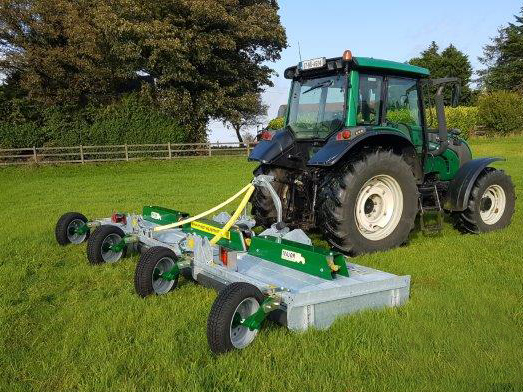

The MAJOR Flex Wing Topper is a three point linkage mounted machine which folds up to 2.3m (7’ 6”) transport width. Like all MAJOR machines, the Flex Wing Topper is of robust construction. CE conformity is achieved through full PTO guarding and heavy rubber skirting to prevent debris from escaping.
The wing cutting decks are raised by hydraulic control to transport position. The wings are capable of flexing from -15 to +25 degrees allowing the cutting unit to follow the ground contours.
Contra-rotating swinging blades are retained in hardened steel bushings and clamped by sprung steel blade backs. Under-sole discs are fitted to prevent scalping and ensure a perfect finish every time.
Features
- Galvanised finish
- Robust pivot points
- Rubber shock absorbers
- Shearbolt PTO protection
- Hydraulic wing lift
- ProCut swinging blades
- 88mm (3 1/2”) blade overlap to eliminate striping
Key Features
| Model | MJ38-540 |
| Overall Width | 5.60m (18’ 4”) |
| Working Width | 5.40m (18’) |
| Transport Width | 2.3m (7′ 6″) |
| No. of Blades | 12 |
| No. of Rotors | 6 |
| Power (HP) | 80 – 120 |
| PTO rpm | 1000 |
| Blade Speed | 74m/s |
| Cutting Height | 50-250 mm |
| Weight | 1395 kg |
