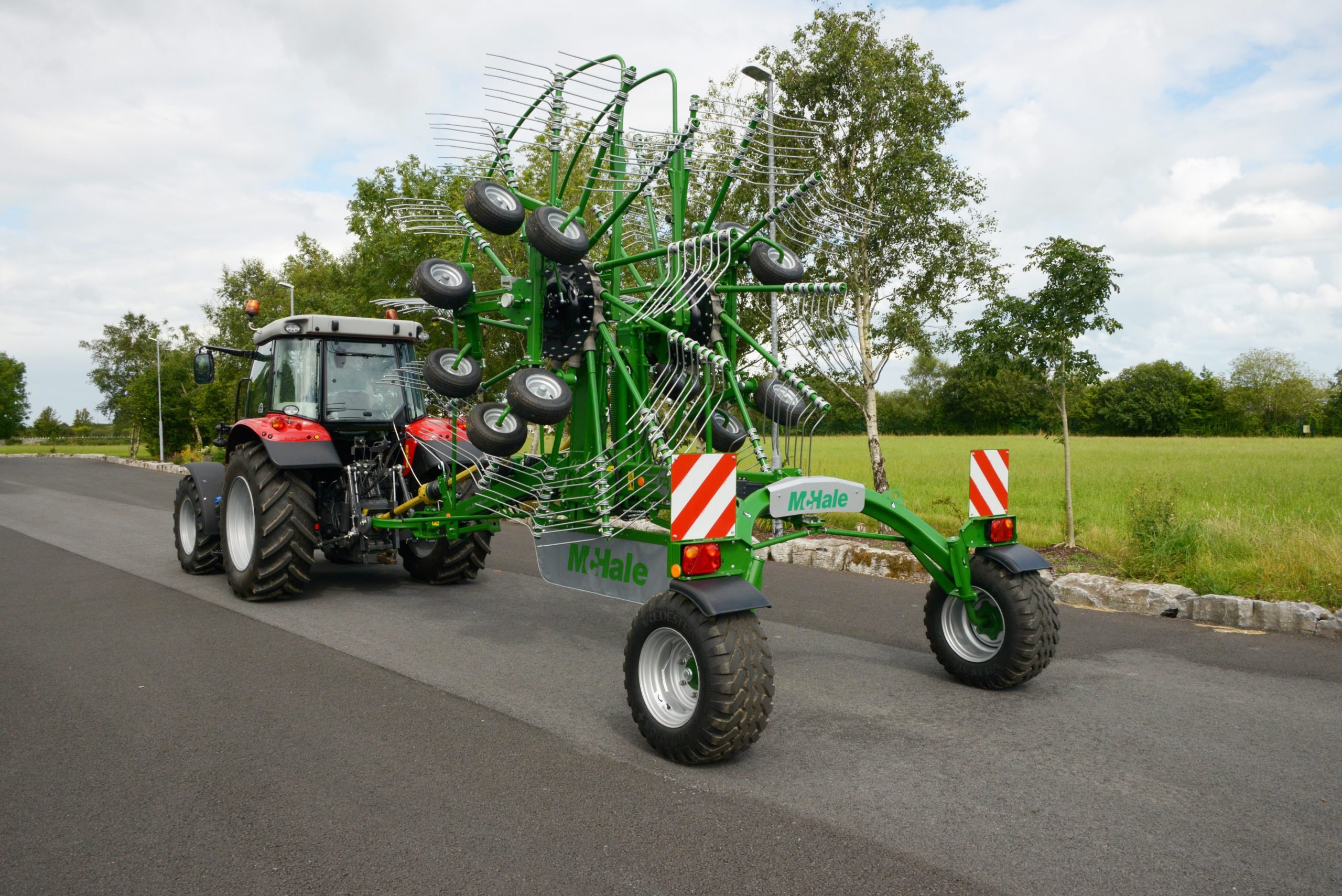

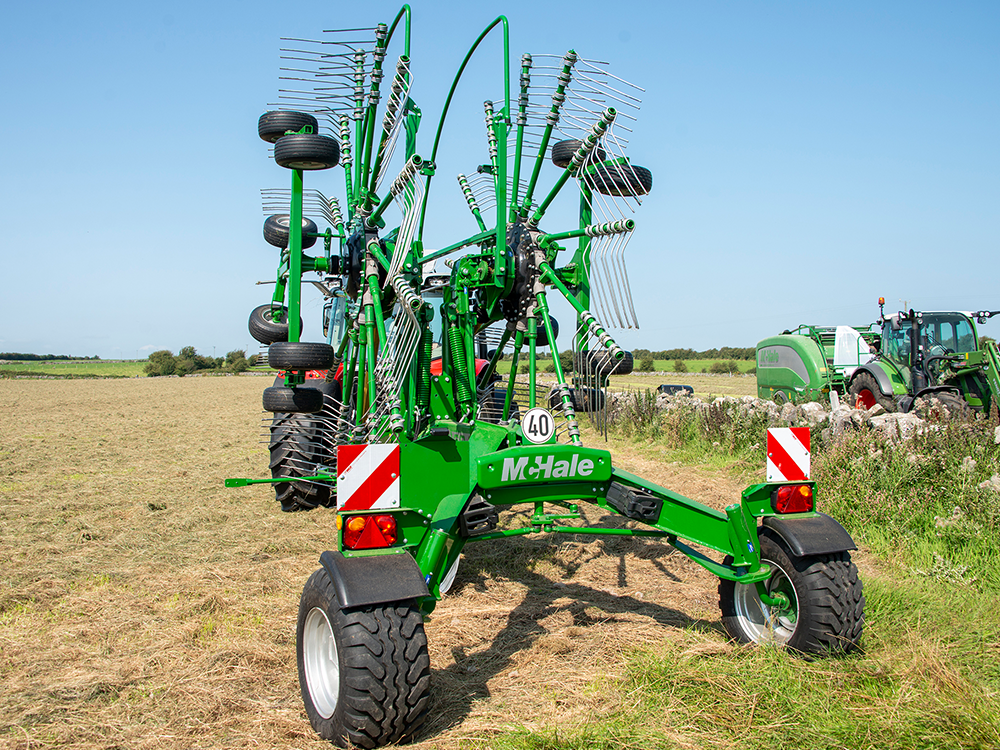

Mchale R62-R72 Twin Rotor Rake
In Stock
Machine Description
Building on their comprehensive range of grass machinery, McHale introduce their R 62-72 centre delivery rake.
McHale rakes have been tested in the world’s most difficult conditions, in order to deliver a strong and robust machine, which is efficient and reliable in all terrain. The McHale R 62-72 rake is an ideal machine for those who want to get the best quality fodder, by delivering an aerated swath. The R 62-72 delivers an ideal swath for maximum baling and harvesting output.

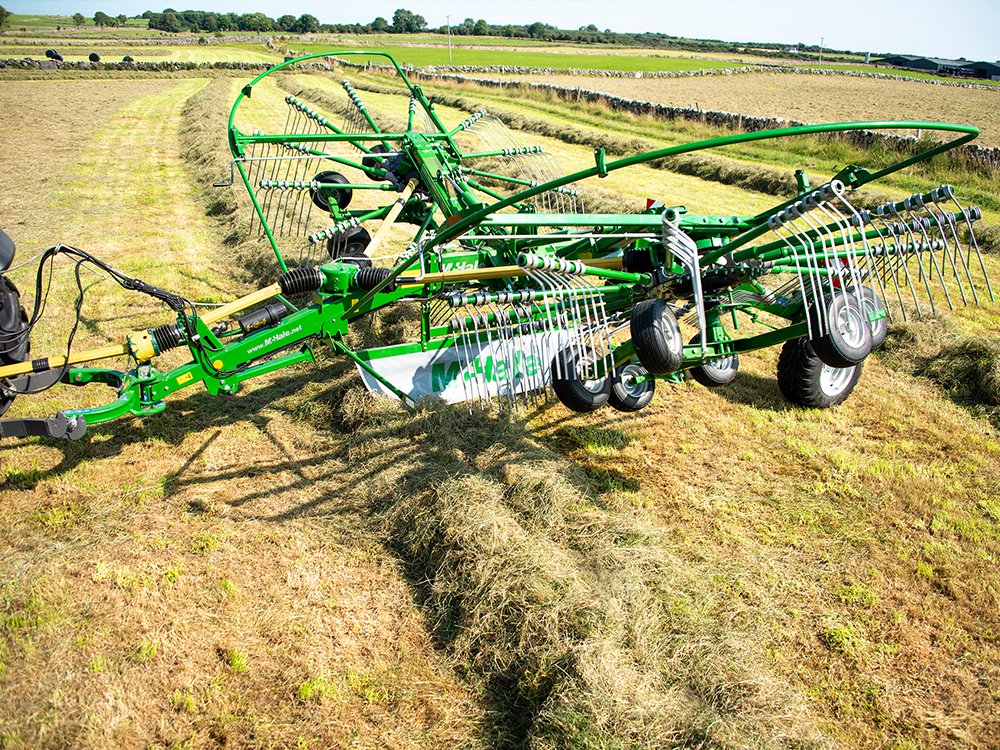

The McHale R 62-72 can be used to combine multiple mower rows or to row up grass, which is left on the flat. McHale centre delivery rakes are powerful but gentle on the crop, delivering the perfect swath preparation. The rotors on the McHale centre delivery rakes are suspended centrally and both rotors operate at equal ground pressure across the adjustable working width to deliver the perfect swath.
| 3 Metre Swath Gathering | 2 Swaths* |
| Mounting Type | 2 Point Linkage |
| Mounting Category | Cat I & Cat II |
| Incab Adjustable Working Width (m/ ft) | 6.2m – 7.2m (20’ 4” – 23’ 7”) |
| Number of Rotors & Rotor Wheels | 2 rotors / 4 wheels per rotor |
| Rotor Diameter (m/ ft) | 2.9 m ( 9’ 6”) |
| Number of Arms | 11 |
| Number of Tines Per Arm | 4 |
| Tine Diameter (mm) | 10mm / 3 Coil |
| PTO Shaft Speed (rpm) | 540 RPM |
| PTO Driveline | Y Gearbox |
| Hydraulic Requirements | 1 x Single Acting &1 x Double Acting |
| Main Greasing | Grease Nipples |
| Axle & Wheels | 6 stud – 380/55/17 |
| Transport Width | 2.84 m (9’ 4”) |
| Transport Height | 3.75 m (12’ 4”) |
| Length | 6.05 m (19’ 8”) |
| Weight | 1890 kg (4167 lbs) |
Key Features
- McHale Heavy Duty Design
- 380/55 – 17 tyres
- Tine Arm Cam Adjustment

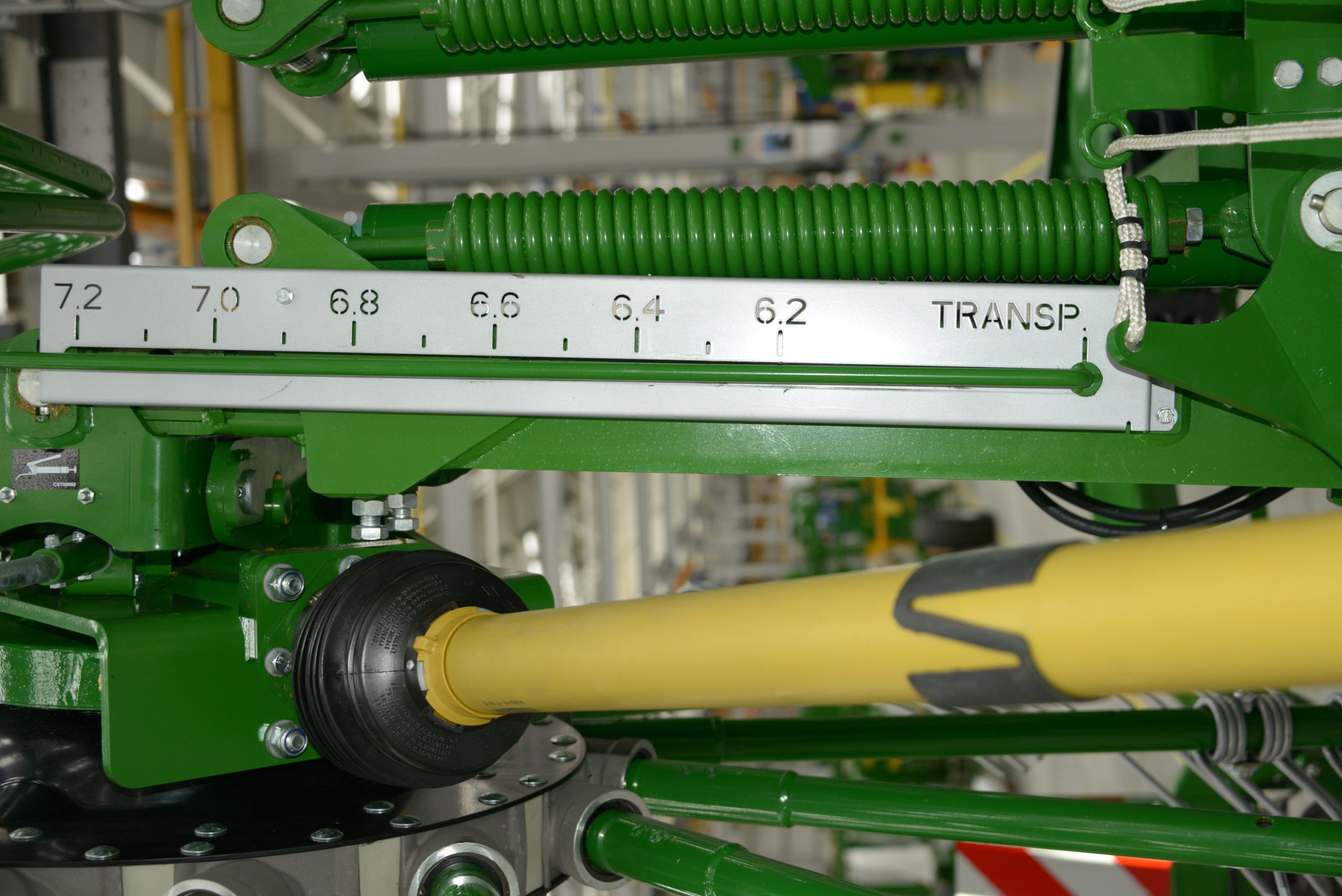

- In cab Width Adjustment
- Pivoting Headstock
- High Speed Running Gear

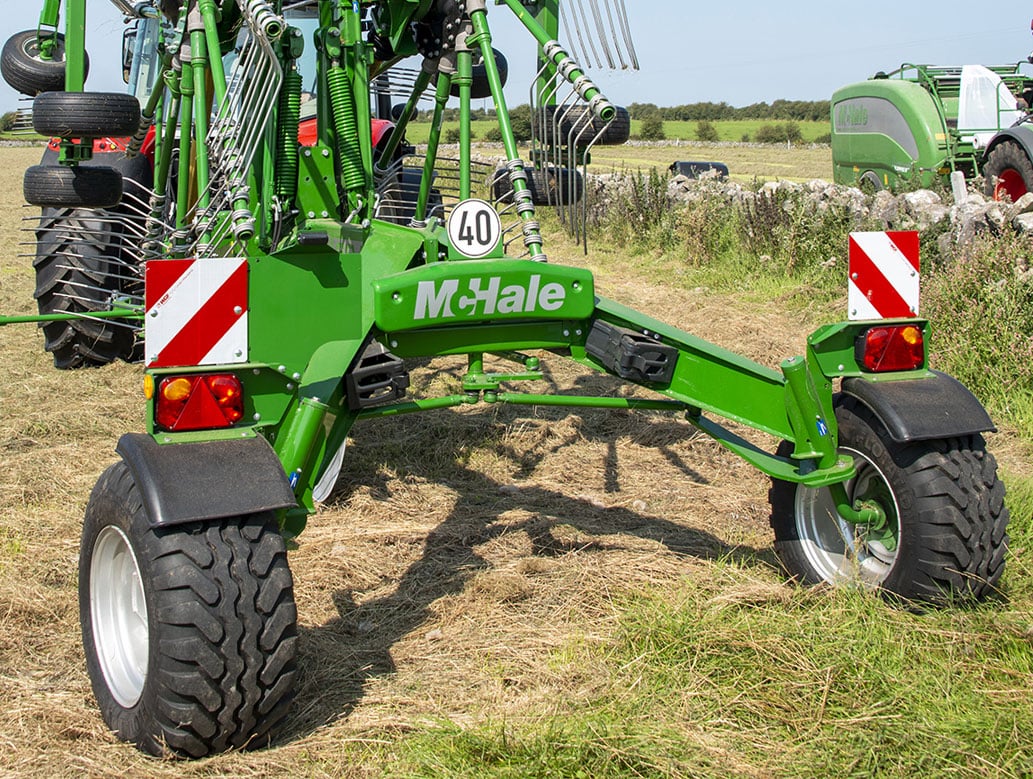

- Steering Axle
- Heavy Duty Wide Angle Driveline
- Rotor Height Adjustment Indicators
- Transport Height under 4m
