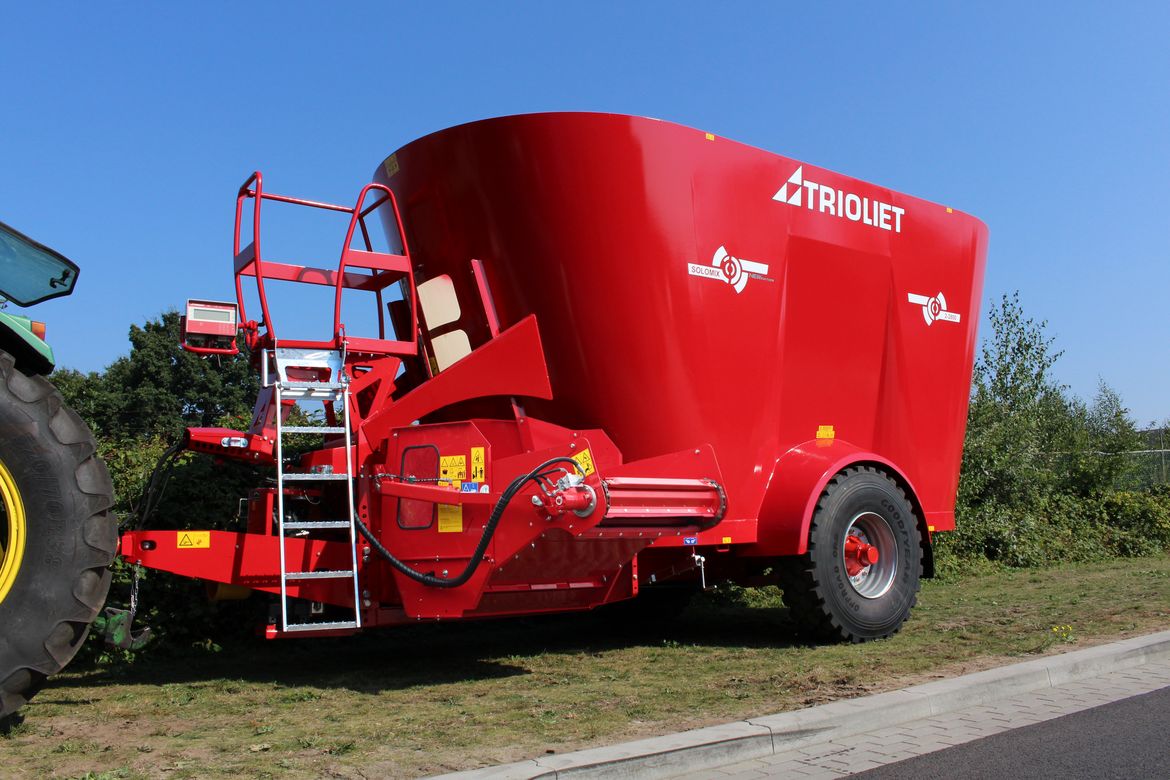

Triolet Solomix 2 VLL Feed mixer

New design diet feeder with 2 augers and a cross conveyor belt (B) or cross conveyor chain (K) at the front (or optionally at the rear). There are also options for a feed trough such as a curved cross conveyor chain at the front with side shift (C) or a cross conveyor chain in combination with a retractable extension chain (S). This type of machine has a deep mixing tub. The wheels are positioned outside the mixing tub. This keeps the machine relatively low, so it is suitable for low sheds. The new design of the mixing tub enables mixing in both a horizontal and vertical direction, the so-called Dual Flow principle.

• Two Twin Stream augers (15 mm flighting / 18 mm wings) (1000/1200)
• Two Twin Stream augers (22 mm flighting / 25 mm wings) (1200L-2800)
• Two (reversible) restrictor blades
• Front conveyor belt (w=0,75) (1000-1200)
• Wide-angle PTO shaft
• Wide discharge unit with conveyor belt or (curved) chain conveyor, for discharge at both sides (B,K,C)

• Wide chain conveyor with in height adjustable chain extension on right hand side (S)
• Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
• Hydraulic brake system
• Two large single wheels
• Wear ring (1200L-2800)
• Reduction gearbox standard with cooling system (2800)
• Control by bowden cable

• Trioform auger knives short
• Dual Flow: Improved shape of the mixing tub and offset inserts (1200L-2800)
• Larger discharge door with rounded edges for better discharge (1200L-2800)
• New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility (1200L-2800)
• Two windows in discharge unit (1200L-2800)
